Motion sensor 869

Detects and reports movement, room to room

Purpose

Detecting movement in a property

The motion sensor 869 is a Passive Infra Red (PIR)-based sensor, designed to detect movement in a room and transmit a radio signal to a lifeline home unit or other Tunstall telecare-enabled systems.

Motion Sensor activity monitoring is ideal for anyone currently using a Tunstall system, particularly those with medical conditions such as dementia, epilepsy or diabetes.

It is designed for care applications where it is important to avoid detecting a user who may be on the floor following a fall (fall zone feature) and therefore ensure an inactivity alarm is generated by the Lifeline home unit, or other Tunstall telecare-enabled systems.

Movement reported every 30 seconds.
5m x 5m detection.
Fall zone – if the user has fallen on the floor and is moving around, the sensor will not detect movement.

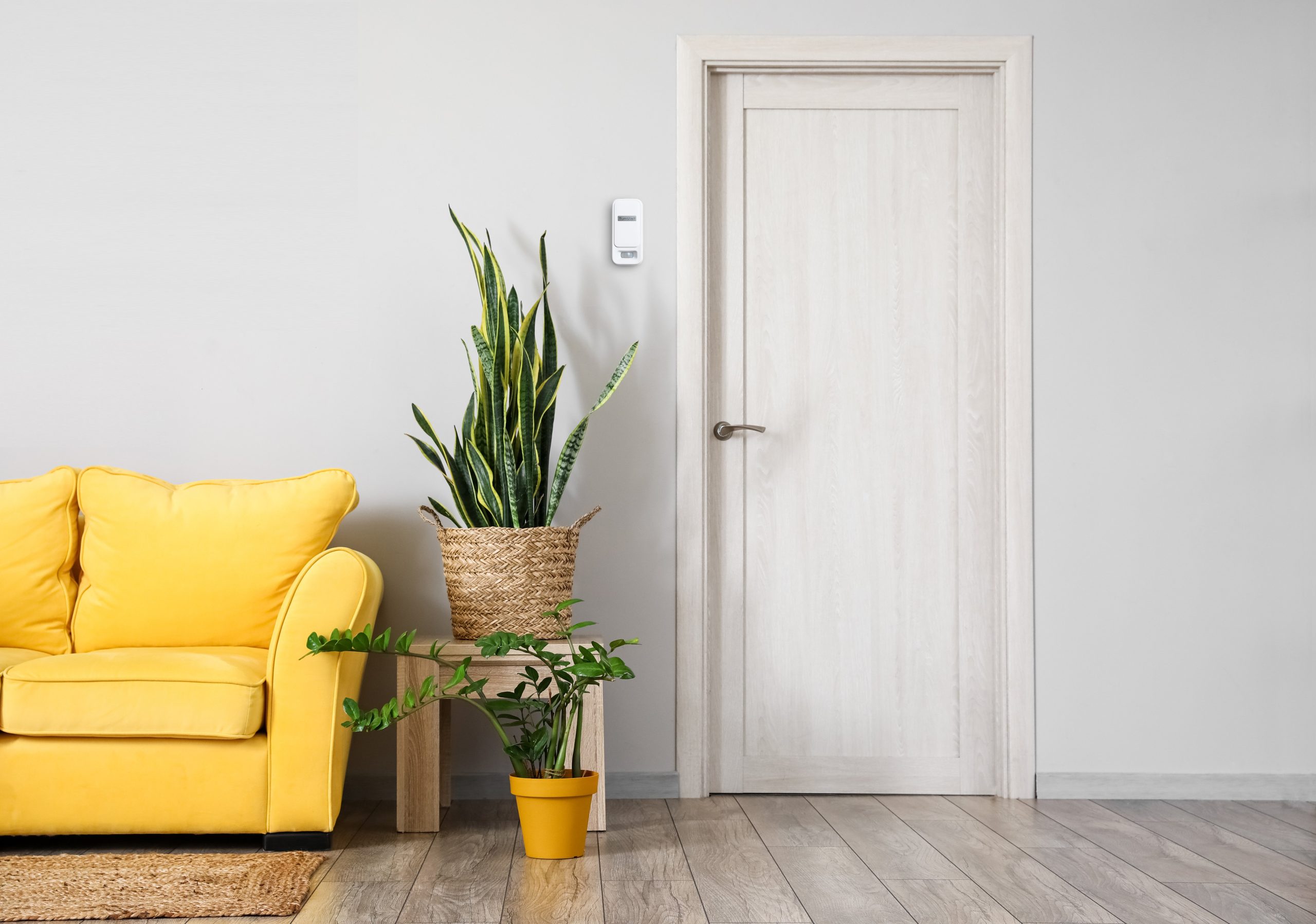

The Motion Sensor will need to be on the wall between 1m -1.2m above the ground.
Easily installed flat against the wall or in a corner.
Simple battery replacement without the need to remove the sensor from the wall.

How

How does it work?

Every 30 seconds the unit reports on the resident’s movement patterns to provide assurance that they are OK. This is ideal for reporting into the Juno wellbeing solution to provide peace of mind.

Features

Intelligent, unobtrusive, person-centred care

Transmission to CAT 1 radio receiver – ensuring that signals from the sensors are received for ultimate reliability; essential where life-critical solutions are used
Fast PIR detection to send a transmission every 30 seconds, when continuous movement is detected
Walk test mode – 3 minutes of LED flashing every time movement is detected to show the PIR is working properly
Can be configured to operate in Auto Low Battery mode (ALB) or Auto Presence (AP) – to transmit the status of the Motion Sensor

Details

Everything you need to know

Dimensions, battery life, connectivity, and compliance standards are all documented below. Download the full datasheet for technical reference.

Download

Motion Sensor Installation Guide

Download

Motion Sensor Datasheet

Let's talk.

Personal

Looking for personal support?

If you’re seeking a personal alarm or direct care support for yourself or a loved one, visit our consumer site.

Your questions, answered

Find answers to common questions about this device and how it works within your care environment.

Does it work with existing systems?

Yes. The device is hardware-agnostic and integrates seamlessly with your current care infrastructure. It connects to the Tunstall ecosystem without requiring a complete system overhaul.

What data does it collect?

The device monitors key health and activity indicators relevant to your care setting. All data is encrypted and stored securely, with access controlled by your organisation’s permissions.
